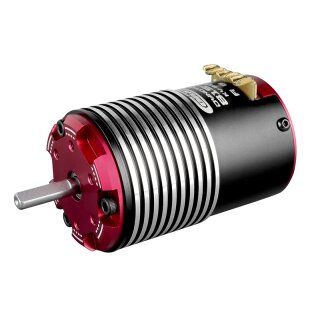

Team Corally - Dynotorq 815 - Moteur Brushless Sensored 1/8 de compétition - 4-Poles - Turns 2D - 2150 KV

The Team Corally 815-4 Pole 1/8 class brushless motor series is a high performance motor line developed using the latest technologies.
We at Team Corally's R-D department only have highest efficiency and maximum power in mind, when we designed this line of 1/8 Class motors. They feature high quality oversized bearings, sintered Neodymium magnets and a superior electromagnetic design.
The result speaks for itself: impressive performance, more power, more top-end and this all keeping the motor temperature lower for maximum efficiency.

Features:

Sensored motor for 1/8 scale competition
Precision machined T6 aluminum motor can
12 Slots Stator Hi-torque motor design
4-Pole Rotor sintered Neodymium magnets
High power solder tabs
High RPM and oversized bearings
High purity copper windings maximizes conductivity
Precision Engineered for maximum efficiency
Super thin (0.2mm) stator laminations
ø5mm Shaft
Removable / replaceable rotor
Compatible with all Sensored/ Sensorless ESC

Power Specs:

Poles: 4-Pole
N° of Windings: 2D
KV: 2150
N° of Li-xx Cells: 2-4S
Max. Current (A): 115A

Tech Specs:

Motor Length: 68mm
Motor Diameter: 40.8 - 42.8mm
Motor Shaft: 5mm
Sensor Ports: 1 Port
Weight: 340g

Turns: 2D
Motor KV: 2150 KV
Motor Shaft ø: 5 mm
Nr of Cells: 2 - 4S
Max. Current (A): 115 A
Motor Length: 68 mm
Motor ø: 40.8 mm - 42.8 mm
Sensor Ports: 1 Sensor Port
